CZETHM10G2P Dual-port 10 Gigabit Ethernet card
Independent research and development, high-performance, low-cost solutions
The CZETHM10G2P network card consists of a PCI Express Gen3 switch, two MAC controllers, and two transceivers
Designed for low-power, low-cost applications
High bandwidth, high performance, support for multi-port configuration
Supports IEEE 802.az Energy Efficient Ethernet (EEE)
NBASE-T solutions are optimized to select the best speed: 10GbE, 5GbE, 2.5GbE, 1GbE or 100MbE
Transmission via Cat5e/Cat6 or higher cables
-

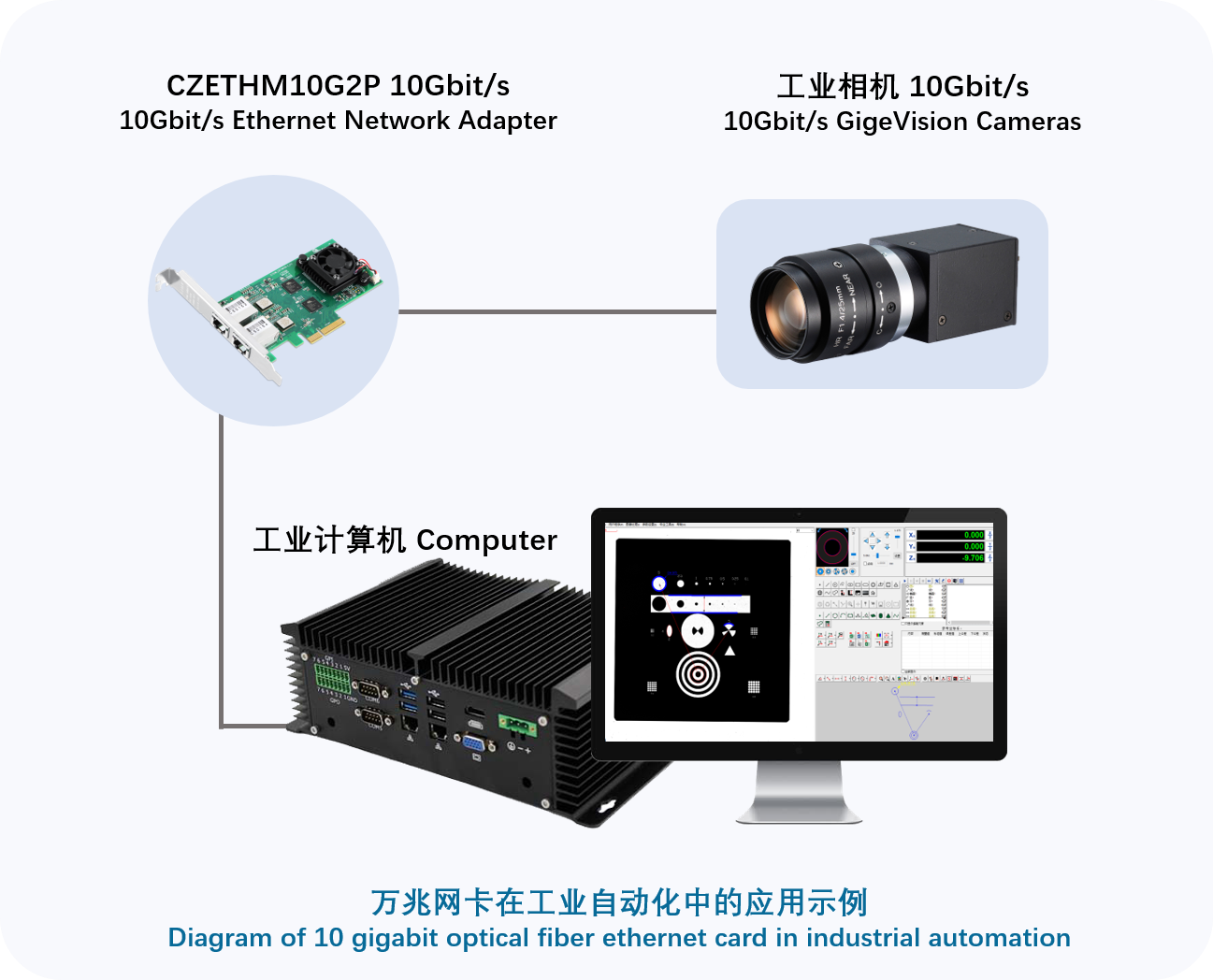

Empower industrial cameras and power the Industrial Internet
As a new industrial ecology and application model, the industrial Internet is promoting the networked, digital and intelligent transformation and upgrading of traditional industries on a global scale. However, software solutions alone cannot provide sufficient network reliability and quality of service, and high-speed network cards with stable performance will play an increasingly important role in the industrial Internet.
CZTEK's self-developed high-speed 10 Gigabit network card has the following advantages:
Low cost, low power consumption, 10G performance, thin and light form factor
Support IEEE 802.3an 10G, 1G and 100M, the maximum transmission distance on CAT6a (or higher) network lines can reach 100 meters
Supports IEEE 802.3bz (NBASE-T) 10G, 5G, 2.5G, 1G and 100M
Use a CAT5e (or higher) network cable connection
PCI Express Gen-3 x4 host bus interface, 9K jumbo frames
IP, TCP, UPH checksum offload function, remote monitoring of statistical information
IEEE802.1Q tag virtual local area network, virtual network card support
Reduced CPU utilization and increased throughput
Widely compatible with multiple operating systems
