Cable solution CIS Tester
Product features

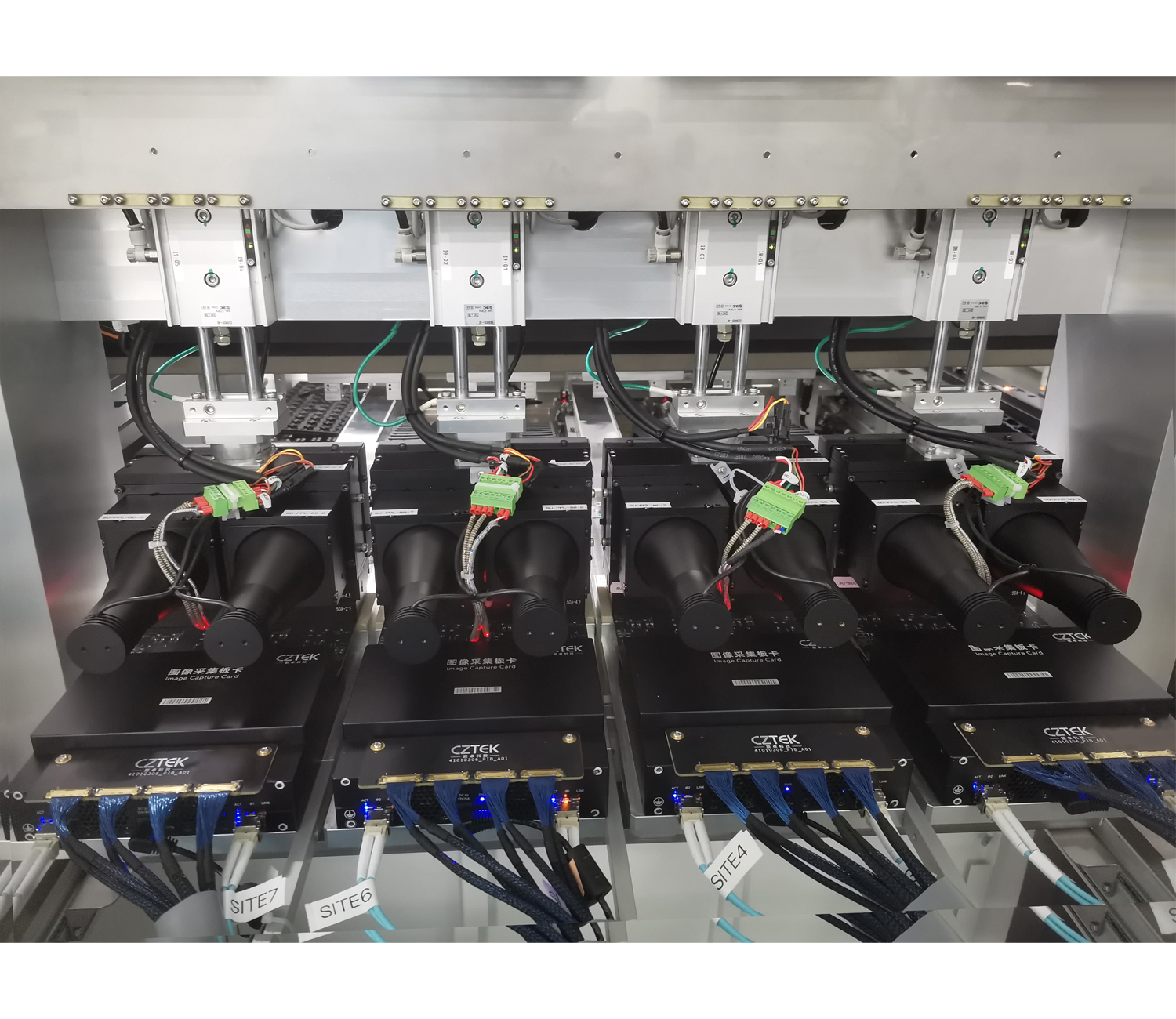

The first 16-site image and electrical integration CIS test solution in China
Highly integrated design, CIS testing can be completed independently and efficiently
Industry-leading MIPI D-PHY and C-PHY rates and DVP interface rates
Perfect electrical characteristics test function

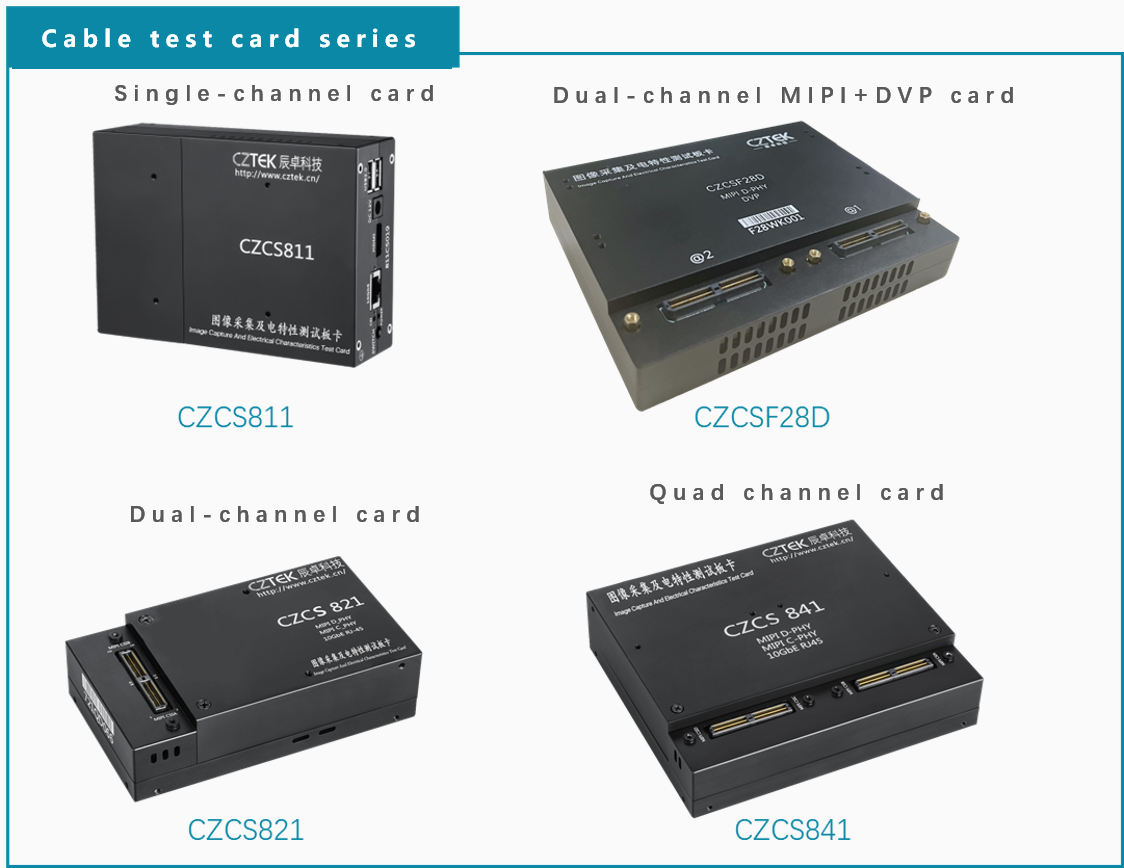

Supports 1/2/4 channel test card configurations
-
Multichannel test card configuration
MIPI C-PHY and D-PHY are compatible, and C-PHY and D-PHY can be switched arbitrarily
MIPI D-PHY rate: up to 2.5Gbps/Lane, support 1/2/4Lane
MIPI C-PHY rate: Up to 2.0Gsps (4.56Gbps)/Trio, support 1/2/3Trio
Sensor power supply: multiple independently adjustable power supplies, all support working current test and standby current test
Electrical performance test: support OS test, DC voltage reading, LP voltage and HS voltage, etc
PC communication interface: RJ450,000 Gigabit Ethernet, up to 10Gbps
-
CIS tests product architecture
Adhering to the concept of technological innovation, CZTEK has independently developed a full set of products and solutions from hardware, software, algorithms to test systems, which can quickly build a test environment for the whole process of CIS chip detection for customers
Master the core technology, have a long accumulation in image detection algorithms, and have a large number of successful customer experience in platform adaptation and secondary development, and can provide customers with products and solutions with higher professionalism and matching
Call us directly
If you need to purchase our products, you can call us directly and we will arrange for the account manager to contact you
